Services

Solutions, delivery and equipment

The problems SIMSAN engineers around, the stages that deliver them, and the technology and industry experience behind the work.

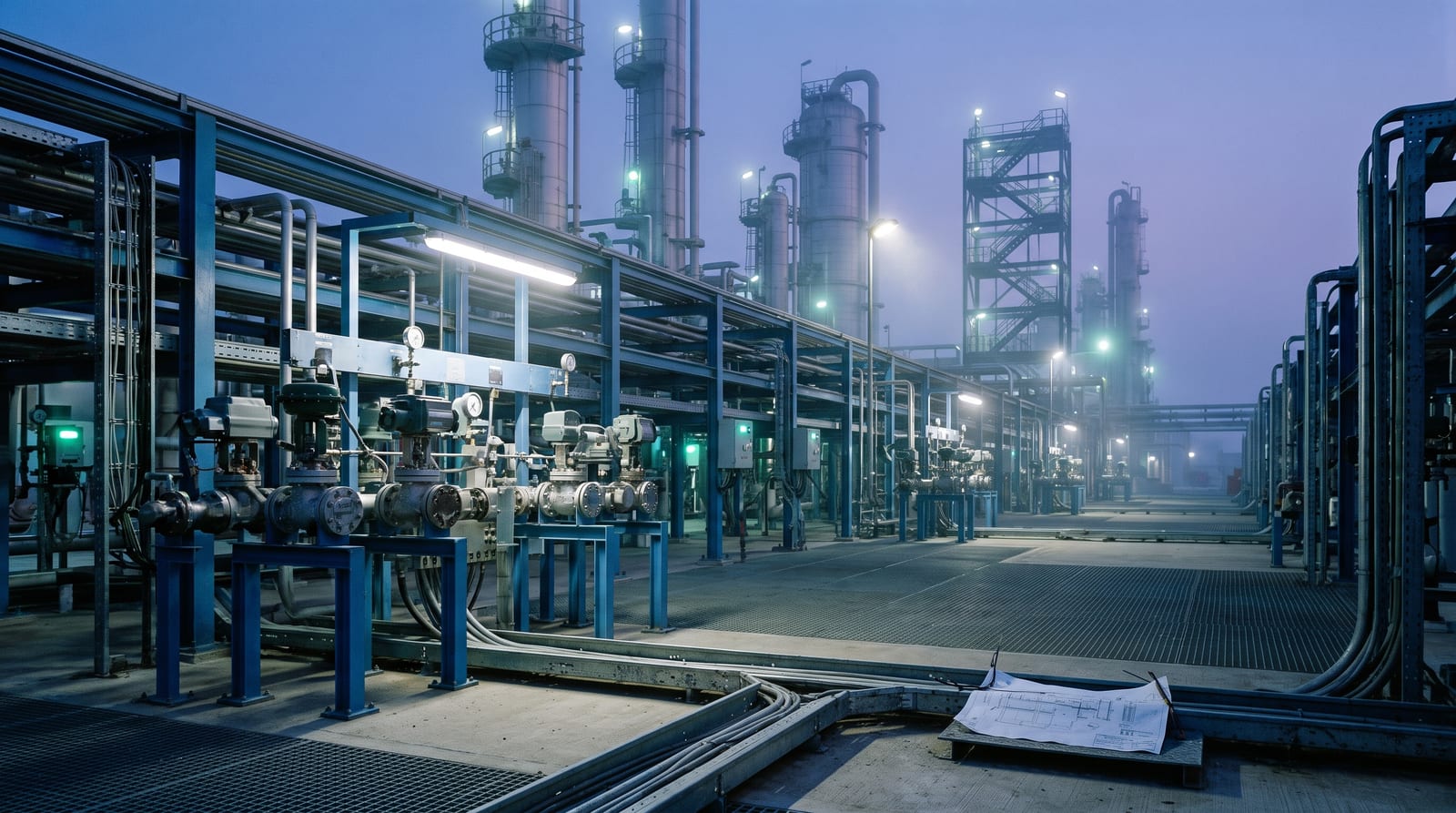

A process plant at blue hour, a multi-level pipe rack running away from camera past a foreground valve manifold station, columns and a stair tower behind.

What we solve

Eleven areas where an engineered answer matters more than a catalogue number. Each one describes the discipline, not a specific delivered project.

Metering and Meter Proving

Measuring transferred quantity accurately enough to be used commercially, and proving that the measurement holds.

Multi-phase Flow Metering

Measuring flow where gas, liquid and solids arrive together and a single phase meter cannot cope.

Monitoring for Wide Range of Applications

Making plant condition visible and logged, where the requirement is to watch rather than control.

Mass and Energy Balancing

Accounting for what enters, leaves and is lost, so losses and efficiency can be located.

Flare Measurement and Management

Measuring very low to very high flare flows and accounting for what is being burned.

Industrial Automation and Control Systems

Bringing plant equipment under coordinated, repeatable control instead of manual and isolated operation.

Tank Management (Tank Gauging, Safety, Blanketing)

Knowing tank contents accurately and keeping the vapour space and pressure inside safe limits.

Hydraulics Power and Controls

Driving and positioning heavy final elements where pneumatic or electric actuation lacks the force.

Boiler and Burner Management System

Sequencing, supervising and protecting combustion so a burner starts, runs and trips safely.

Loading and Off-loading Systems

Controlling and recording product transfer to and from trucks, rail cars, ships and pipelines.

Harsh Process Conditions

High pressure and temperature, erosive and corrosive fluids. Keeping measurement and final control working where pressure, temperature or the fluid destroys standard equipment.

How a project is delivered

Six stages. Not every project uses all six, and the last three run only where the project needs them and they are applicable.

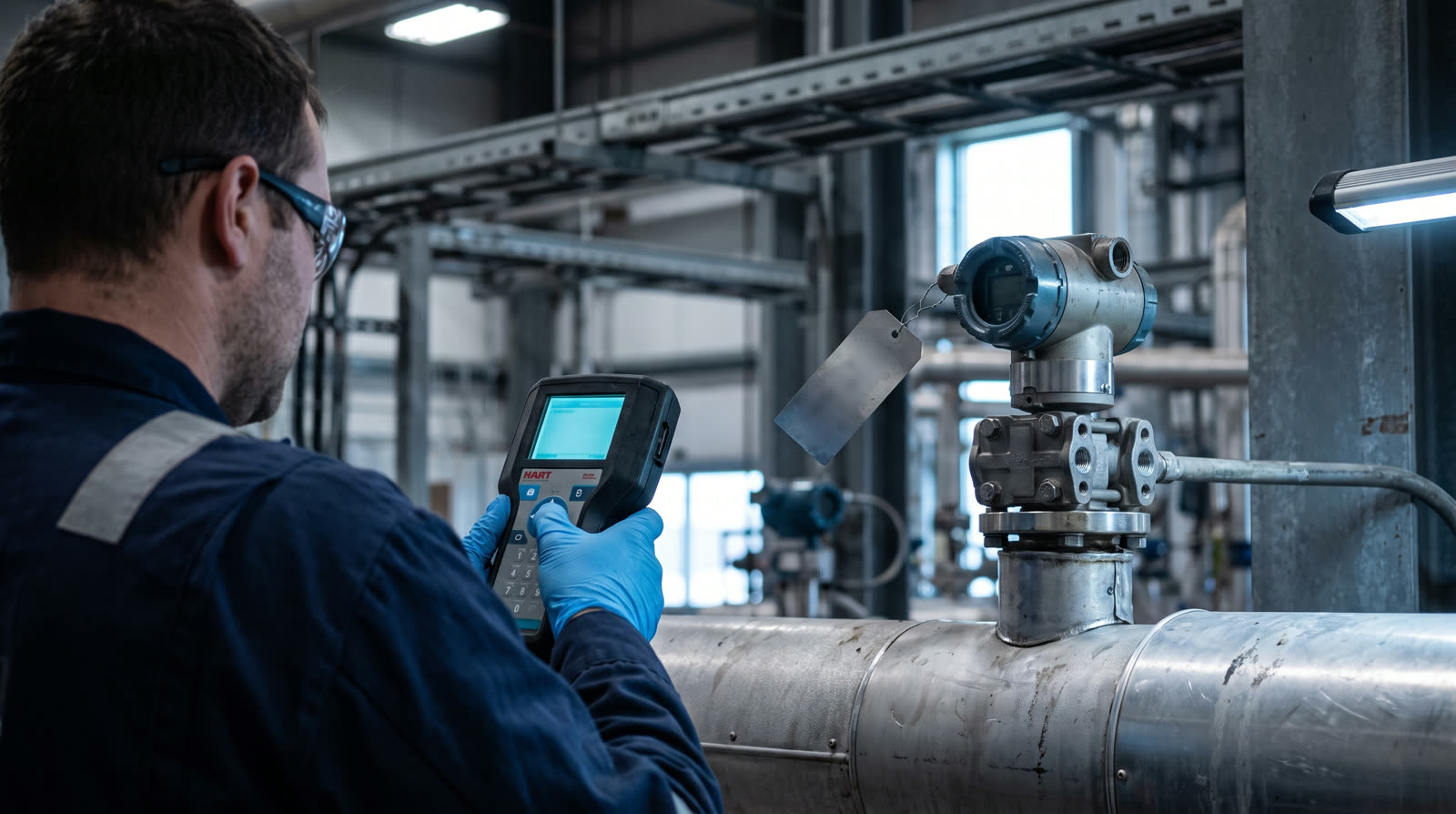

A technician using a handheld HART communicator at a pressure transmitter during loop commissioning, plant structure behind.

Equipment

Technology and equipment we specify and supply

Supplied equipment is original and brand new, and carries the manufacturer's standard support, guarantee and warranty.

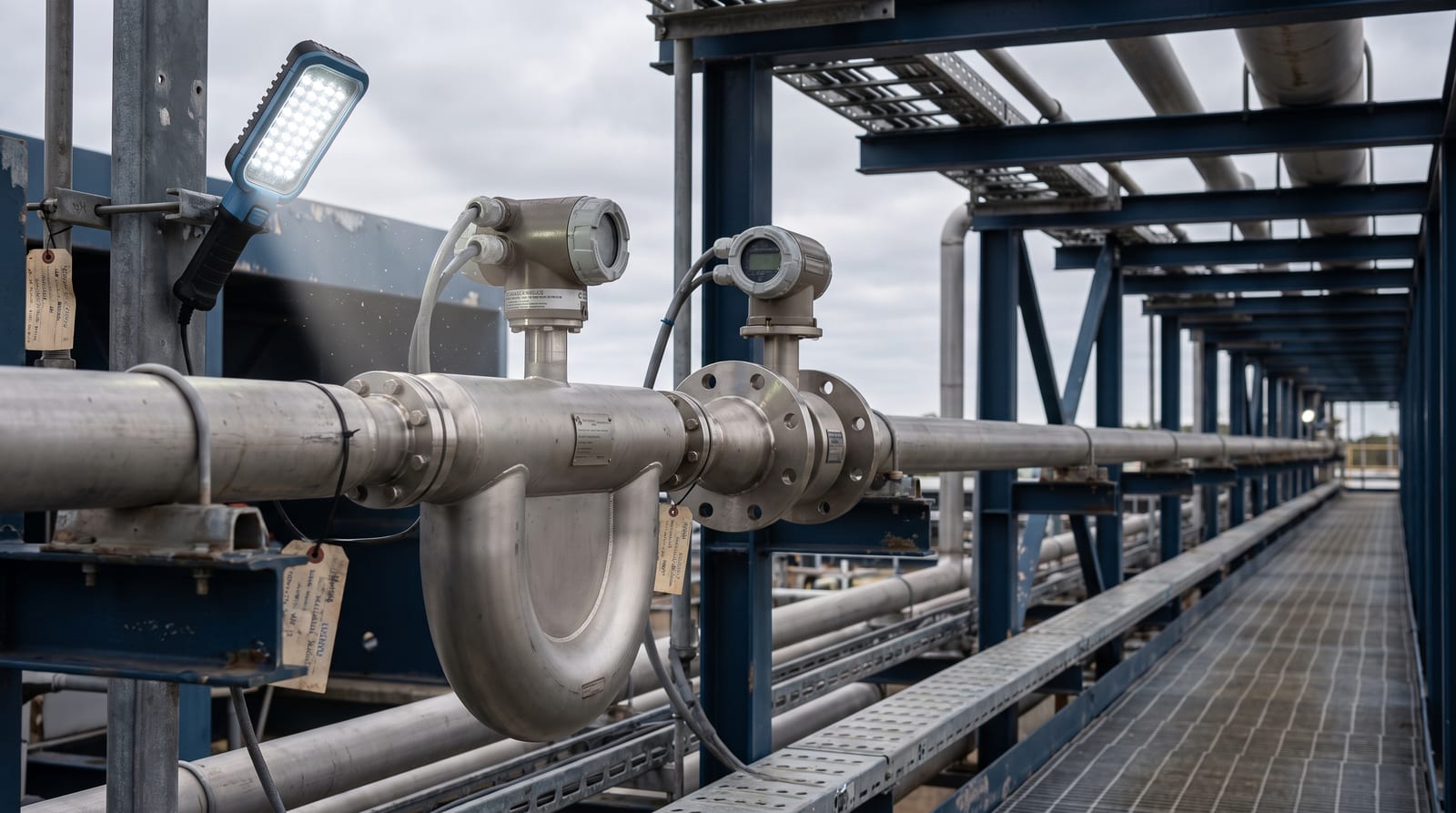

A Coriolis mass flow meter and a magnetic flow meter installed in line on a stainless steel process pipe run, transmitter heads and cable glands visible.

Flow measurement (gas, liquid, slurry and powder)

Volumetric and mass flow, from clean gas service to slurry and powder. 24 item types.

Flow transmitters, HART and FF Coriolis Ultrasonic Vortex

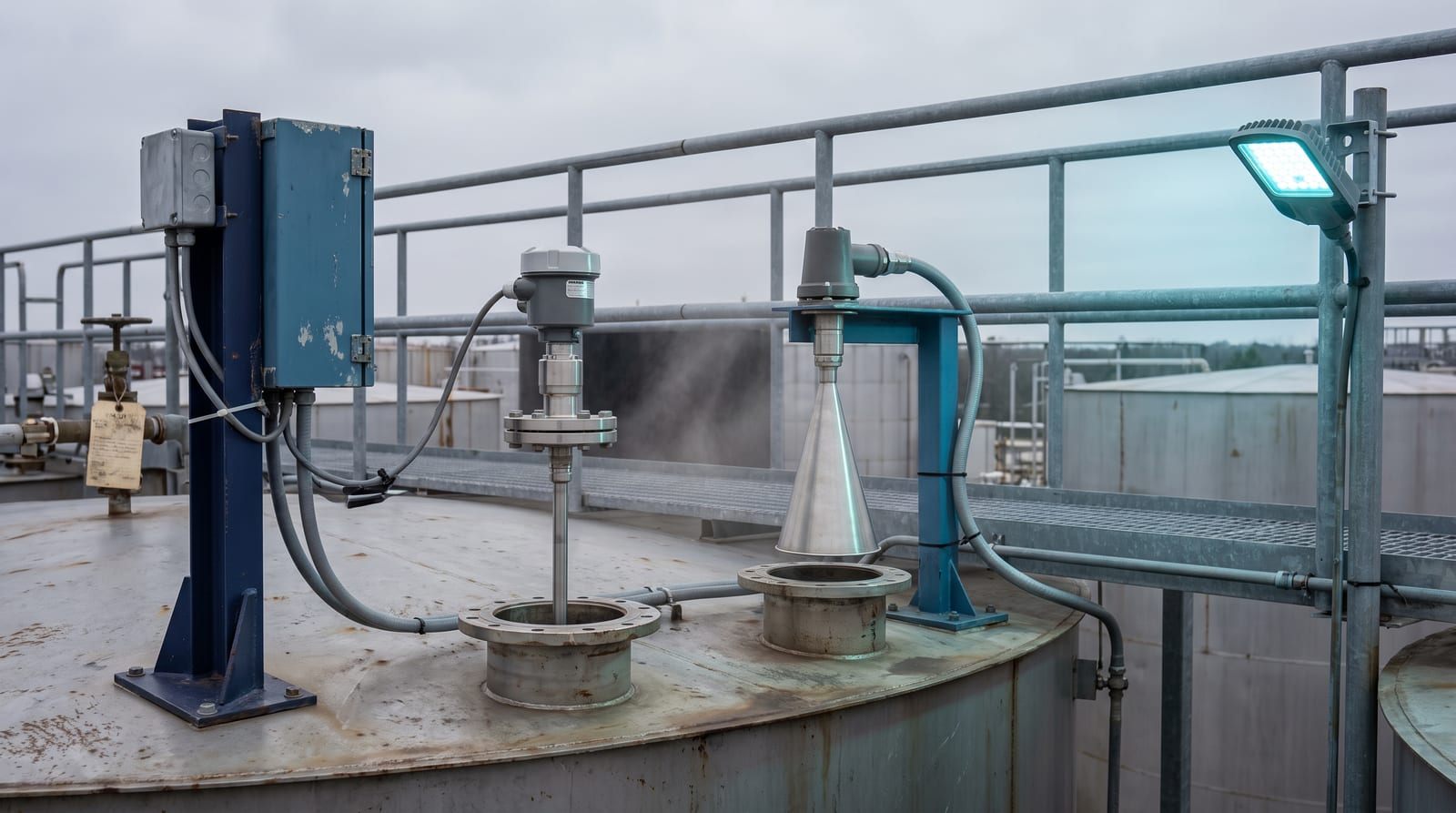

A guided wave radar level transmitter on a storage tank roof nozzle, a horn antenna radar unit on the adjacent nozzle pointing straight down into the tank, handrail and grating behind.

Level measurement (liquid and powder)

Continuous level, point level and tank gauging for liquids and solids. 16 item types.

Level transmitters, HART and FF Radar Ultrasonic Displacement

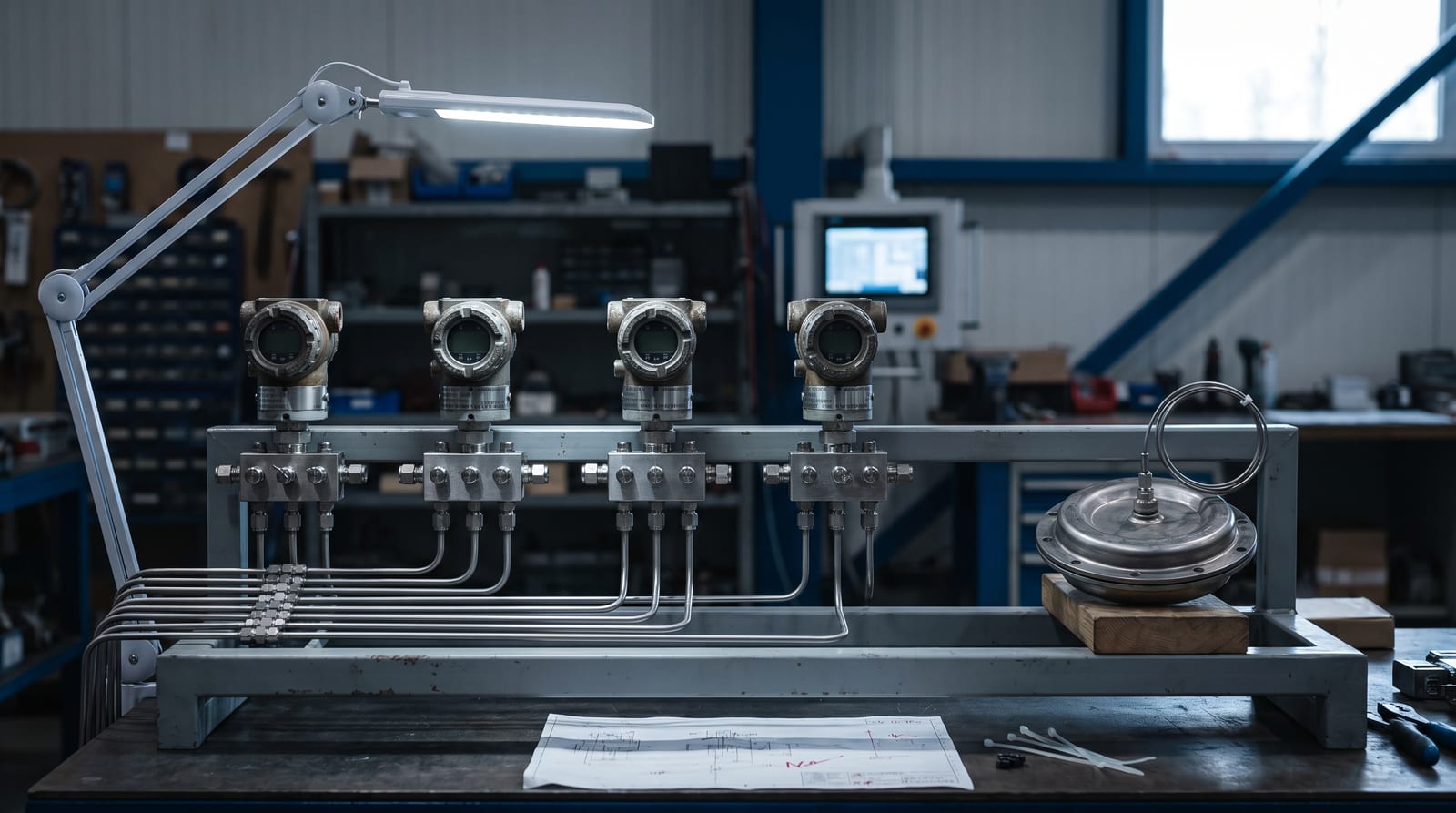

Differential pressure transmitters on five-valve manifolds on an instrument stand, impulse tubing running in neat parallel bends into each manifold.

Pressure measurement

Gauge, absolute and differential pressure, with the accessories that keep it working. 13 item types.

Pressure and DP transmitters, HART and FF Pressure and DP switches Pressure and DP gauges Pressure and DP switch-gauges

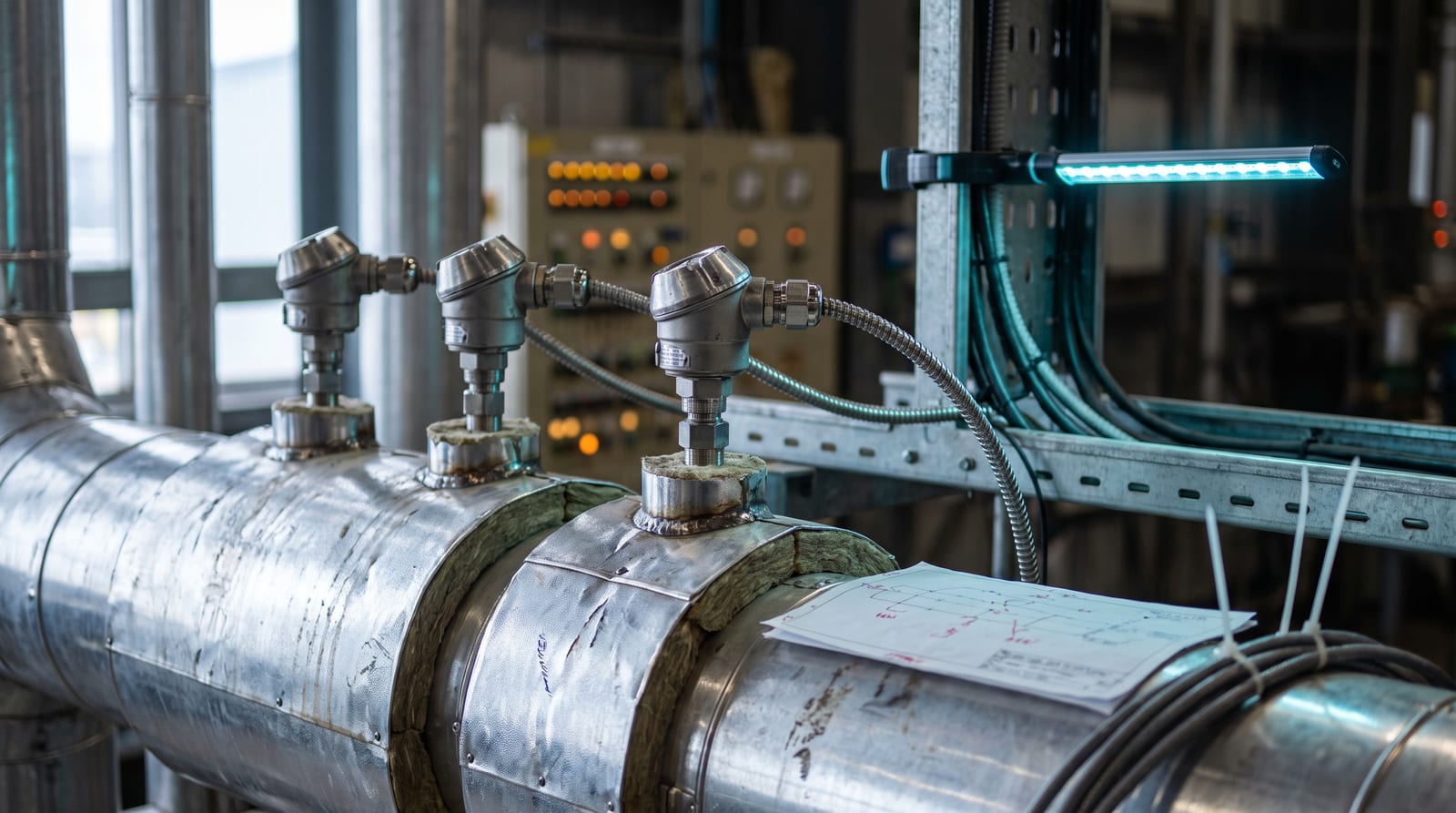

Thermowells welded into insulated process pipework, each carrying a temperature transmitter head with cable gland and armoured cable.

Temperature measurement

Contact temperature measurement, from the sensor and thermowell to the transmitter. 9 item types.

Temperature transmitters, HART and FF Temperature switches Temperature gauges Temperature switch-gauges

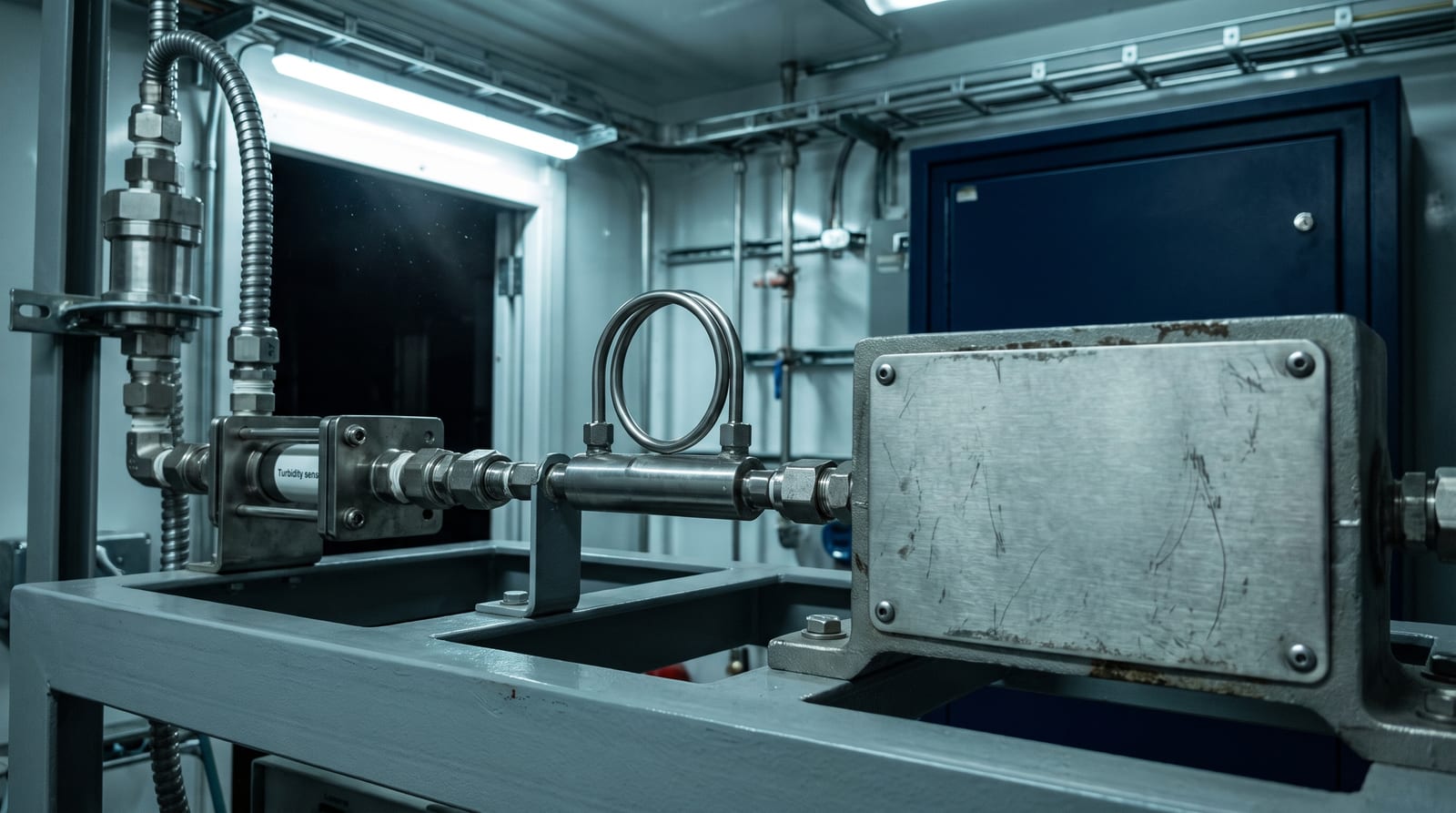

An in-line turbidity sensor and a density and viscosity meter housing connected by stainless tubing on a small-bore sample loop skid, compression fittings and support brackets visible.

Other process parameters

Density, viscosity, concentration, moisture and humidity, where the standard four are not enough. 5 item types.

Density transmitters, resonating principle Viscosity measurement Concentration measurement, conductivity principle Moisture transmitters for powders and solids

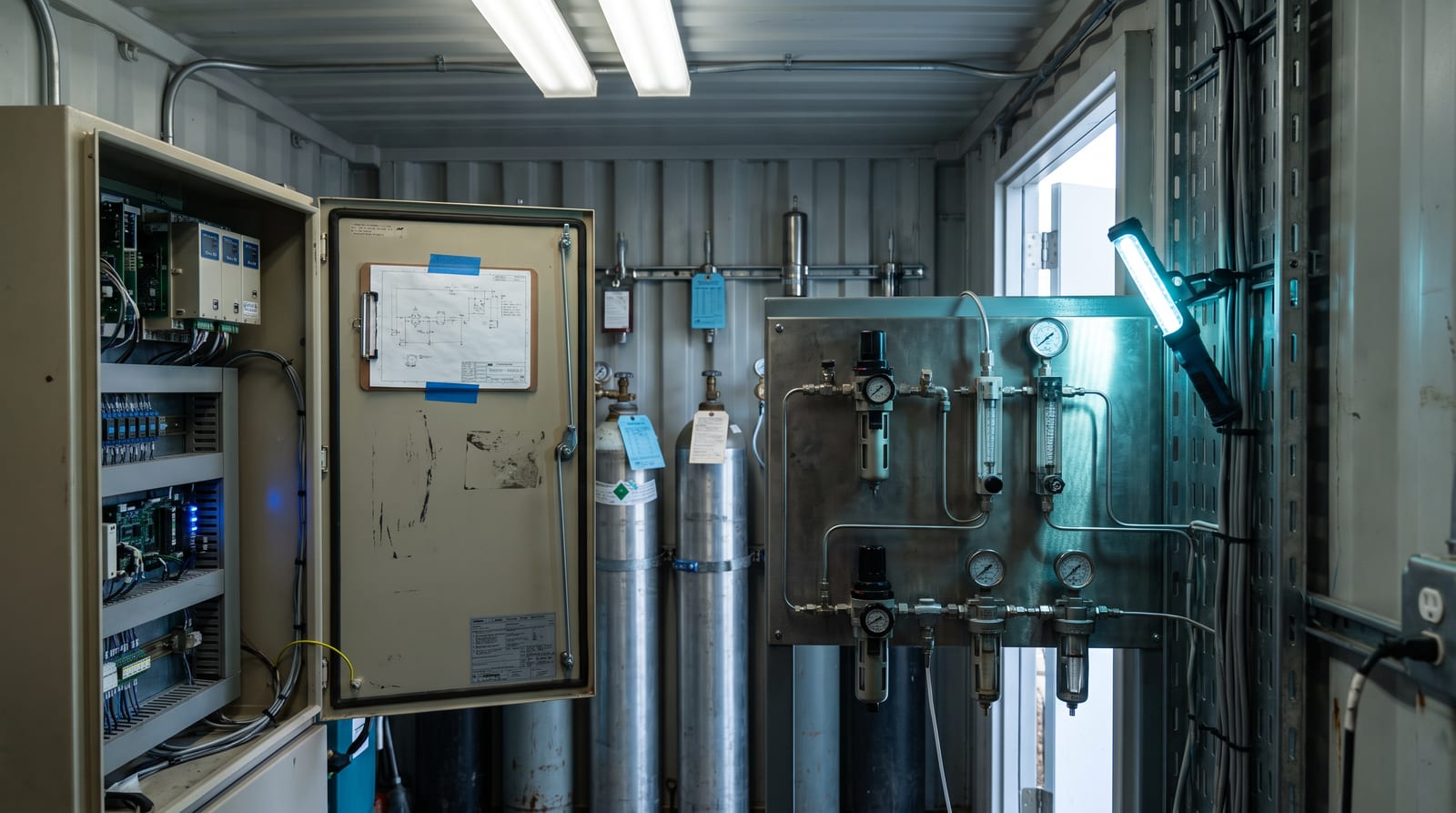

The interior of a gas analyser house, a stainless sample conditioning panel of regulators, filters and rotameters beside an open analyser cabinet.

Analysers (gas and liquid)

Composition measurement for process control, safety and environmental reporting. 12 item types.

pH ORP Conductivity Dissolved oxygen

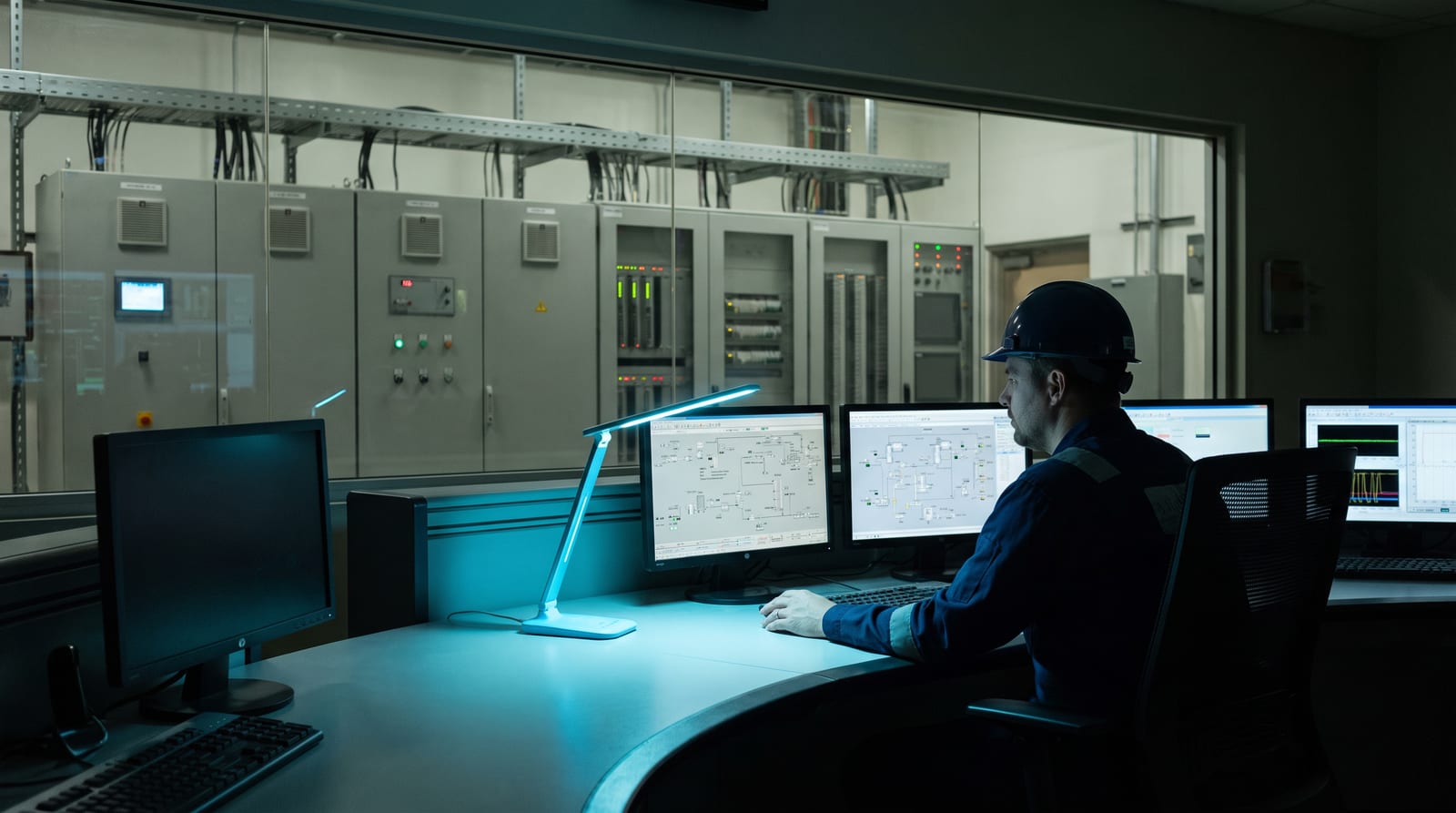

A process control room seen from behind the operator desk, a console of screens showing process graphics and a row of control cabinets beyond the glass wall.

Control room instruments

What sits between the field and the operator: control, display, isolation and power. 14 item types.

On/off controllers PID and cascade controllers Multi-loop controllers and PAC Panel indicators

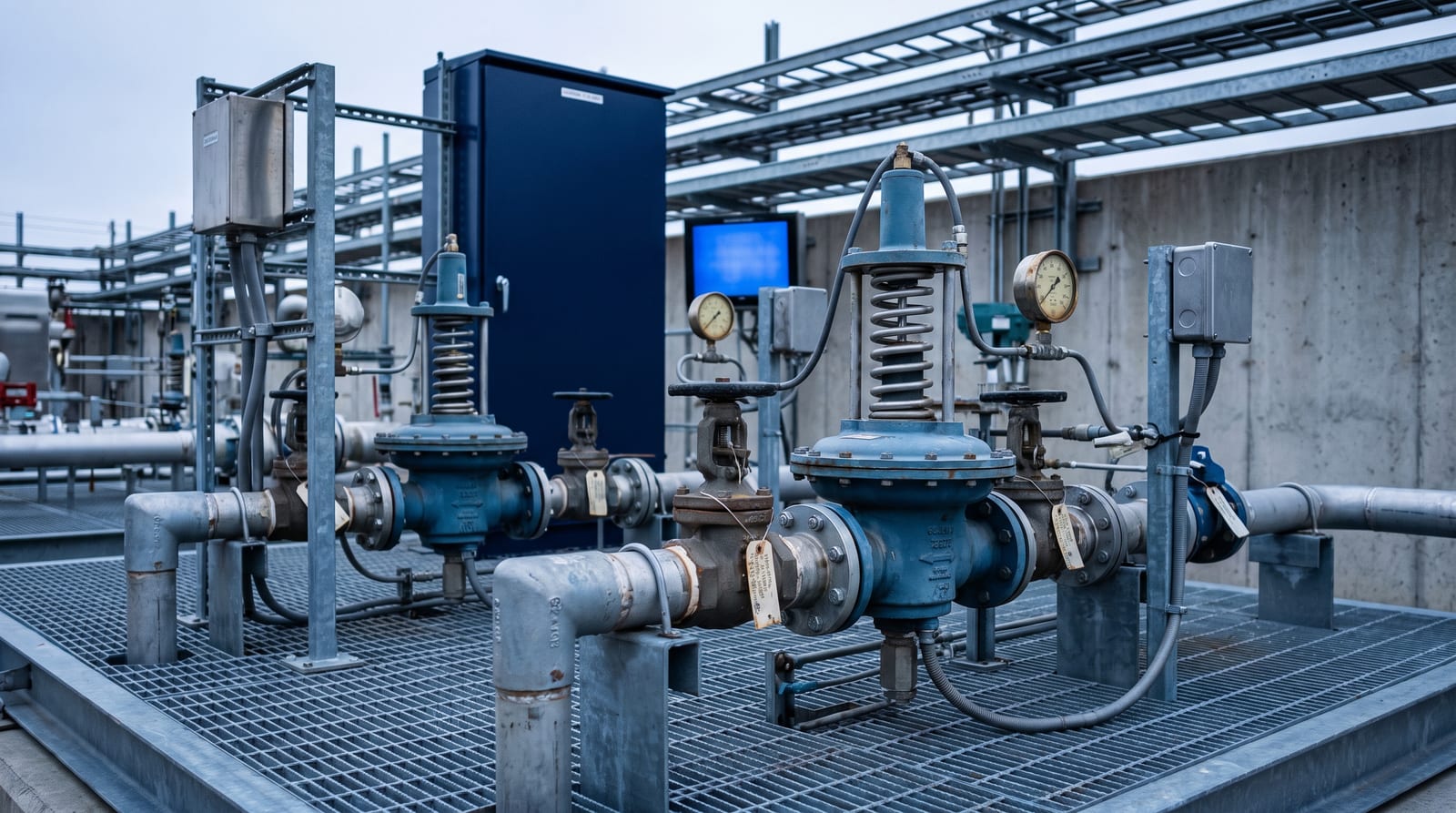

An outdoor pressure regulating station with two self-operated spring-loaded regulators in parallel runs, isolation valves and a pilot line between them.

Self-acting valves and regulators

Pressure and temperature held by the process itself, with no external power required. 10 item types.

Pressure self-control valves (PCV) Temperature self-control valves (TCV) Back pressure regulators Vacuum pressure regulators

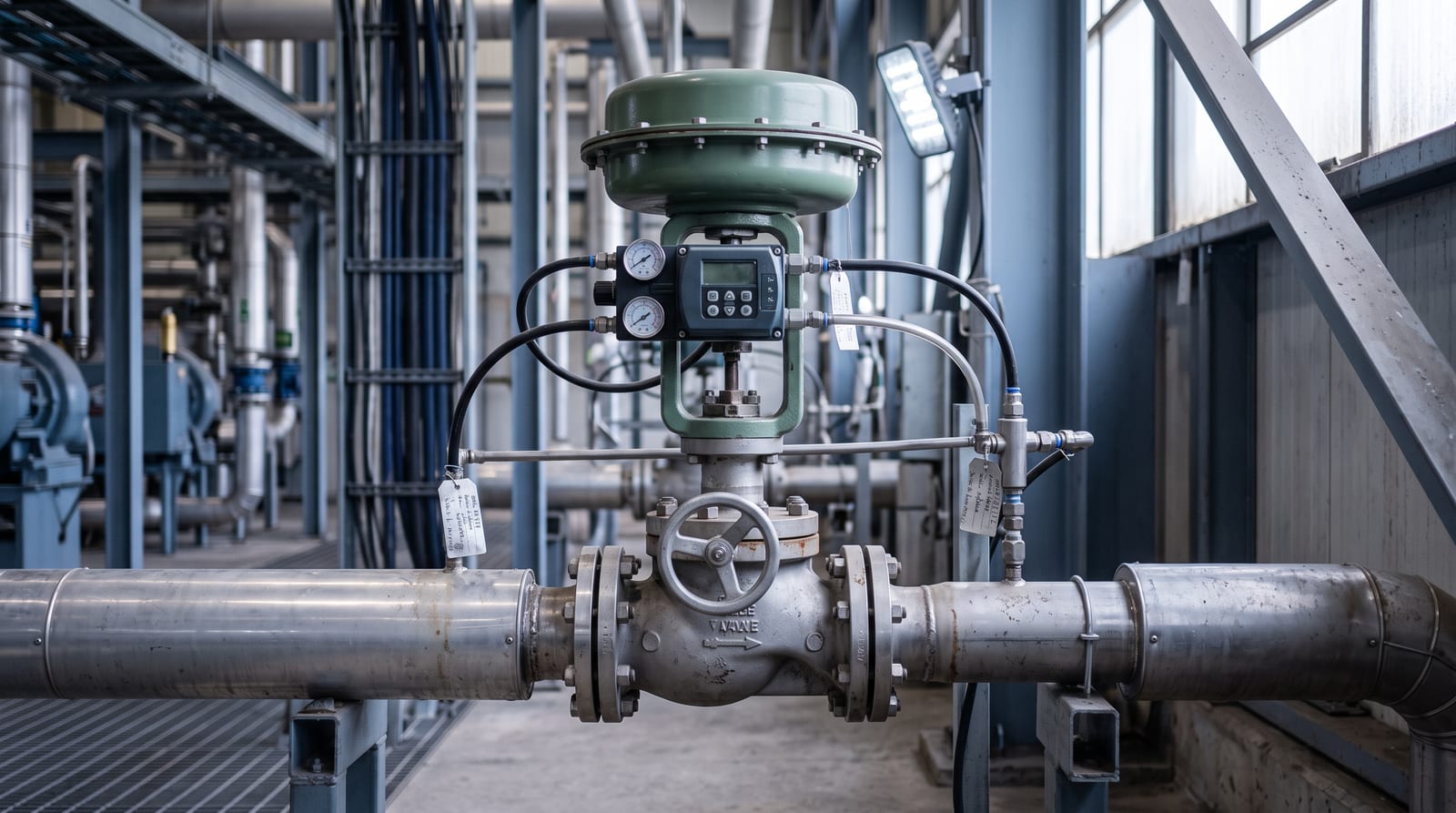

A globe control valve with a pneumatic diaphragm actuator and a digital positioner on the yoke, air tubing running to the positioner.

Actuated and automated valves

Final control elements across the full range of flow, pressure and service. 15 item types.

Low and micro flow control valves Control valves for normal service High flow control valves High pressure and high temperature control valves

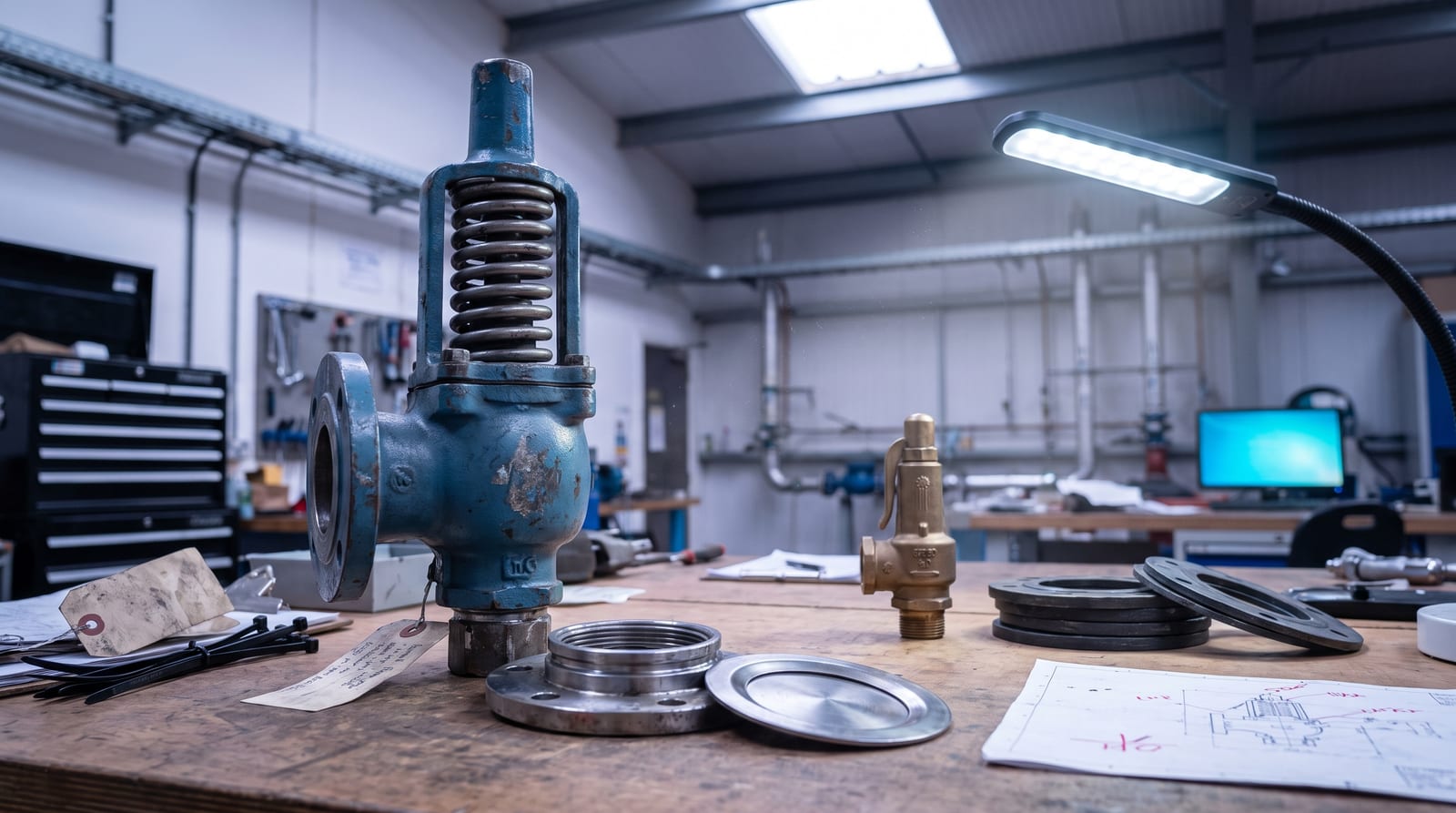

A spring-loaded pressure safety relief valve on a workshop bench beside a rupture disc holder with its disc laid flat, a smaller relief valve behind.

Safety valves and relief devices

Overpressure protection for vessels, lines and tanks, plus flame propagation control. 5 item types.

Pressure safety valves (PSV) Pressure relief valves (PRV) Rupture disks Tank relief valves

A belt weigher under a conveyor carrying dry bulk solids, its load-cell weigh frame and speed sensor visible, a load-cell mounted silo behind.

Instrument bulk material

The connections, enclosures and cable that make an instrument package installable. 7 item types.

Instrument connections and tubing Instrument valves and manifolds Junction boxes Cable glands

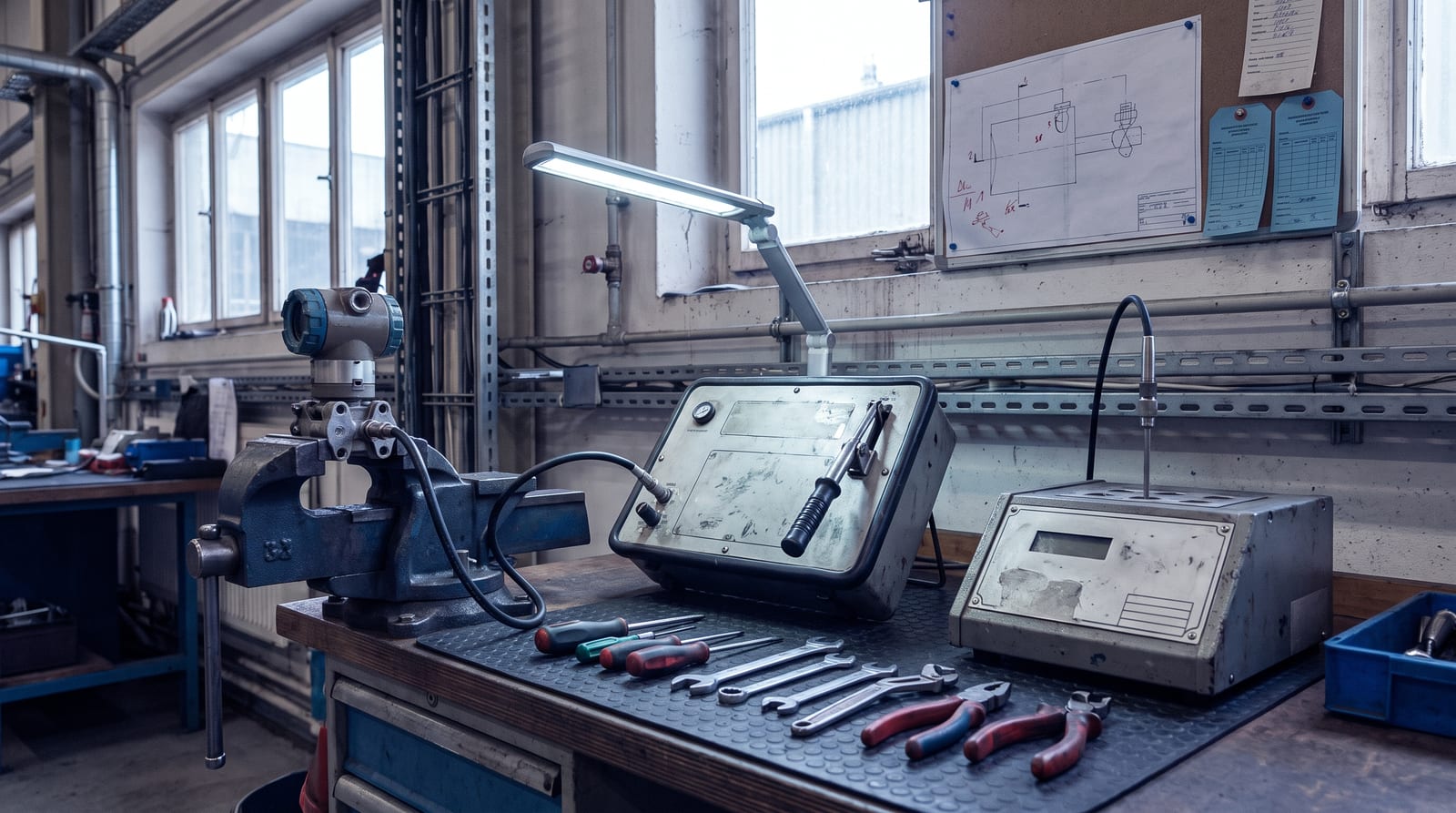

An instrument calibration bench with a portable pressure calibrator and hand pump connected to a transmitter in a vice, a dry-block temperature calibrator beside it.

Workshop, valve shop and calibration equipment

The bench side of instrumentation: calibrating, testing and refurbishing instruments and valves. 8 item types.

Hand pumps Dead weight testers Pressure calibrators Temperature calibrators and temperature ovens

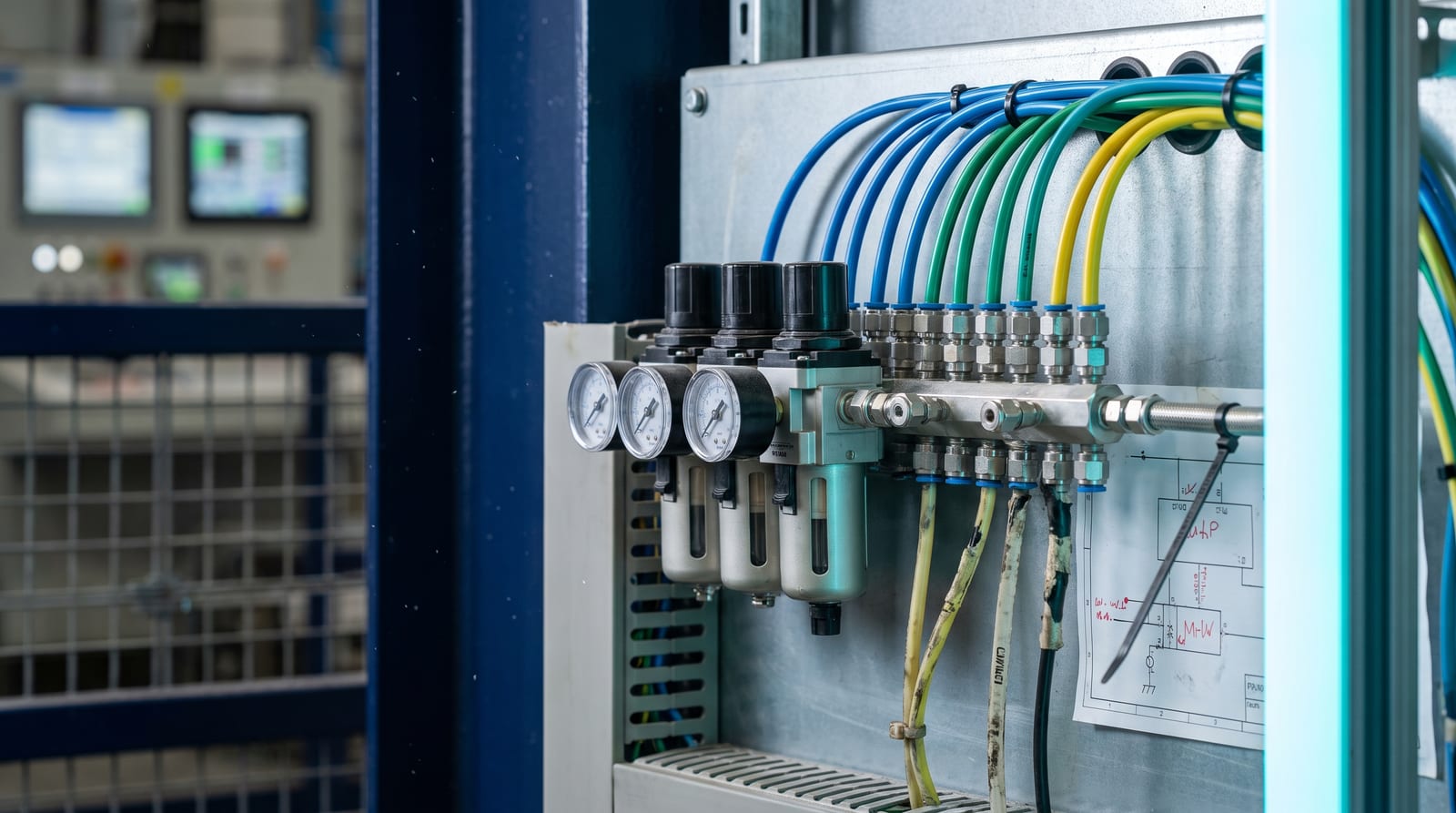

An instrument air panel with a row of filter regulators and gauges on a back-plate, stainless fittings feeding a manifold and pneumatic tubing in parallel runs.

Pneumatic instruments

Pneumatic measurement and control for plants and areas where electrical signals are unsuitable. 4 item types.

Pneumatic pressure and DP transmitters Pneumatic temperature switches and transmitters Pneumatic controllers Pneumatic recorders and indicators

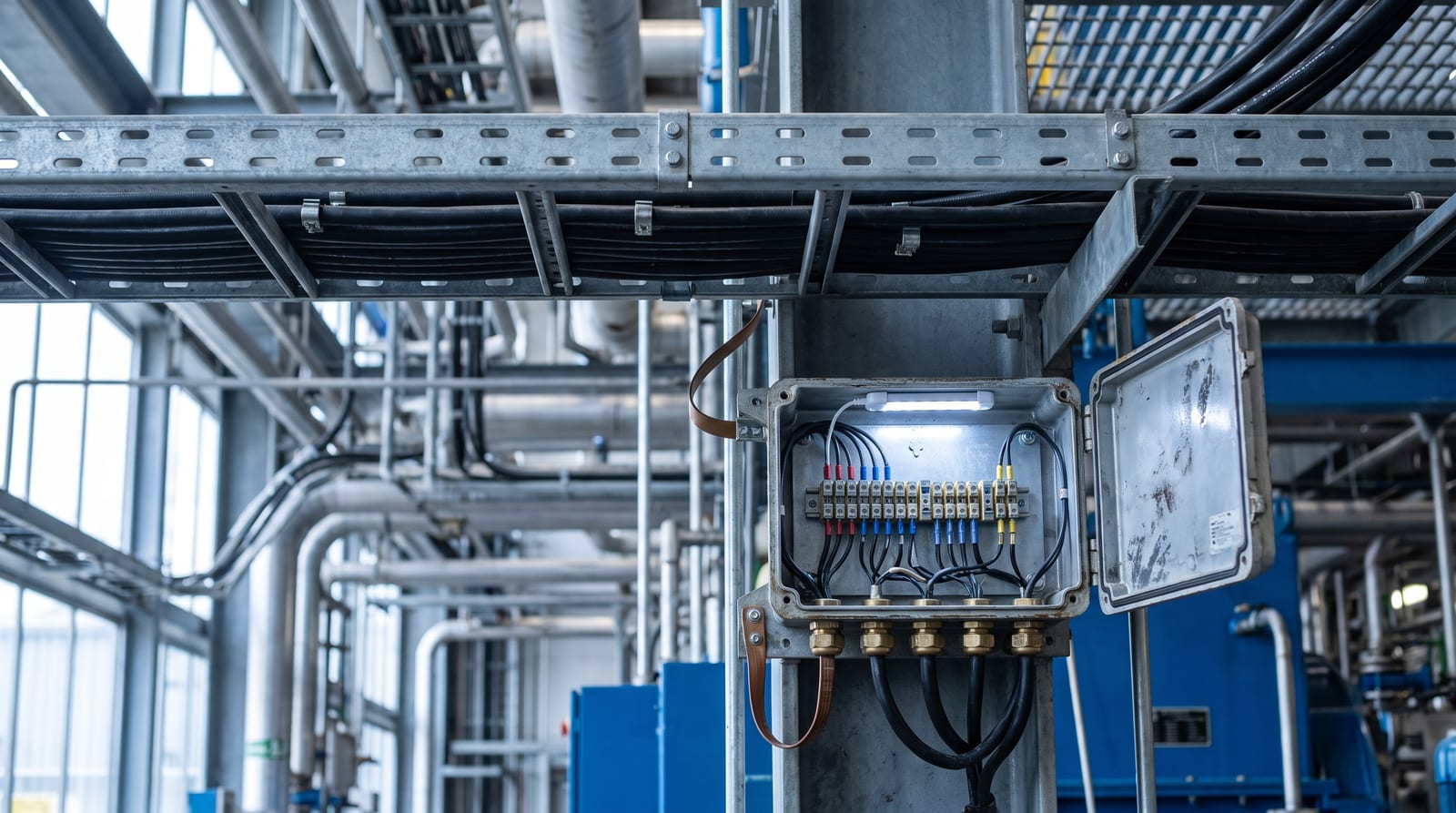

A galvanised cable ladder carrying armoured instrument cables, an opened junction box below showing ferruled terminals, glands and earth bonding.

Electrical and mechanical equipment

Electrical machines and fixed and rotating mechanical equipment are supplied alongside instrument and control scope. 3 item types.

Electrical equipment and machines Fixed mechanical equipment Rotating machines

01 / 14

Industries

The same four measurements run through all of these industries. What changes is the fluid, the pressure, the temperature and the consequence of getting it wrong.

A refinery process unit at dusk, a distillation column with platforms and ladders behind a dense pipe rack carrying instrument stands and transmitters.

Oil and Gas

Oil and gas is a major source of the world's energy and an area of SIMSAN activity, specifically in high steam service, pipelines and refinery sections.

The measurement problems are hydrocarbon flow at custody grade accuracy, pressure and level across a very wide range, and final elements that have to shut in safely rather than fail open.

A chemical process structure of stainless reactors and jacketed vessels over three grating levels, diaphragm seal assemblies on the nozzles and control valves in the lines.

Chemical and Petrochemical

Chemical and petrochemical plants are a major area of interest for SIMSAN.

The characteristic problem is not the measurement principle but the fluid: erosive and corrosive service eats standard wetted parts, so the specification work sits in materials, remote and diaphragm seals, and valve trim selection, alongside the composition and temperature control that the reaction itself requires.

The instrument side of a steel plant, blue local control panels and a water cooling manifold on a walkway with the hot rolling line far behind.

Mine and Metals

Mine and metals, and steel above all, is an area SIMSAN has been active in for many years.

The measurement problems are high temperature, dust and vibration, heavy final elements that need force to move, and process furnaces and utilities that have to be sequenced and interlocked rather than driven loop by loop.

A power plant equipment hall, a row of lagged horizontal pressure vessels with instrument gauges and steam pipework overhead, a control cabinet in the foreground and an overhead travelling crane above.

Power and Energy

Thermal, gas and combined cycle plants share the process nature of other process industries, which is why the same instrument and control disciplines apply.

The load is concentrated in steam and water measurement, combustion air and fuel control, drum level under swell and shrink, and burner sequencing that has to prove safe conditions before it will fire.

A biogas and solar utility site, digester tanks with instrument stands, a gas conditioning skid with flow meters, solar panels and a wind turbine beyond.

Renewable Energy

Clean and renewable energy sources and their related industries are an area SIMSAN does not set aside, out of a commitment to environmental protection.

The measurement and control problems are those of any distributed generation and process plant: remote monitoring, data acquisition, and control of equipment that is not continuously attended.

The evaporator floor of a sugar mill, tall evaporator vessels with sight glasses and level bridles, steam pipes overhead and control valves at floor level.

Sugar Cane and Side Products

Sugar cane and its side product industries were one of SIMSAN's first areas of activity.

The plants combine continuous and batch operation across milling, juice heating, evaporation, boiling and utilities, which puts the emphasis on level and density measurement, steam and energy balance, and control that copes with a variable feedstock rather than a specified one.

Manufacturers we specify, supply and work with

The manufacturers below are brands SIMSAN specifies, supplies and holds experience with, either as equipment held in our own stock or as equipment supplied and worked with on projects. Naming a manufacturer here does not indicate a distribution agreement, an agency, a dealership, or an authorisation of any kind.

ASCON-TECNOLOGIC Emerson Rosemount Fisher Micro Motion Spriano DUNGS Officine Orobiche NIVUS Rheonik CMC Instruments Simer EuroMag Fluitek Orsenigo

SIMSAN also specifies and supplies equipment from other established manufacturers. Tell us the brand you need and we will confirm what we can source.

Start with the requirement

Describe the process problem or the scope of supply, and an engineer will tell you what it needs.
